Unit Conversion

Overview

Apply a unit conversion to each value in a selected data stream.

Syntax

=convert([data stream], "fromUnit", "toUnit")

Example

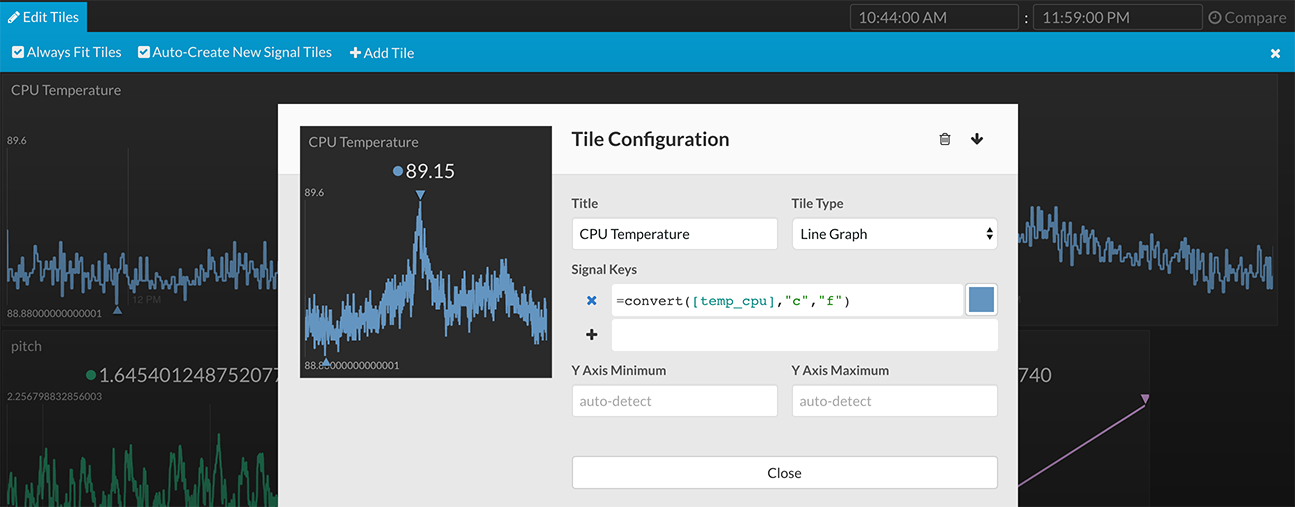

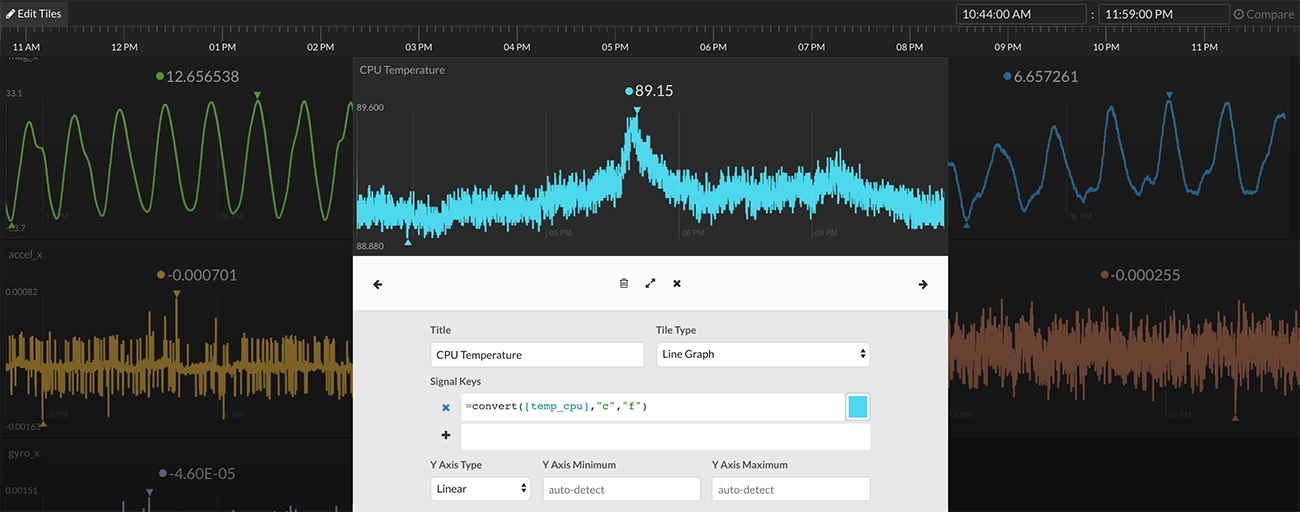

=convert([temp_f], "f", "c")

Uses with other Expressions

You can combine =convert with other expressions. For example, a data stream could be converted to a different unit and then smoothed using the =smooth function by nesting the =convert function inside the =smooth function parameters:

=smooth(convert([speed], "mph", "kph"))

Supported Units

Temperature

c – Celcius
f – Fahrenheit
k – Kelvin

Angle

rad – Radians
deg – Degrees
gon – Gradians
turn – Turns

Byte

b – Bytes
kb – Kilobytes
mb – Megabytes
gb – Gigabytes
tb – Terabytes

Time

ns – Nanoseconds
us – Microseconds
ms – Milliseconds
sec – Seconds
min – Minutes
hr – Hours
day – Days

Length

ang – Ångströms
nm – Nanometers
um – Micrometers
mm – Millimeters
cm – Centimeters
m – Meters
km – kilometers
nmi – Nautical Miles
mi – Miles
yd – Yards
ft – Feet
in – Inches
pica – Pica

Speed

m/s – Meters per second
kph – Kilometers per second
knot – Knots
mph – Miles per hour
mps – Miles per second
fps – Feet per second
ips – Inches per second

Pressure

torr – Torr
mmhg – Millimeters of mercury (0°C)
inhg – Inches of mercury (32°F)
pa – Pascals
hpa – Hectopascals
kpa – Kilopascals
mbar – Millibars
bar – Bars
psi – Pounds per square inch
psf – Pounds per square foot
atm – Standard atmospheres

Mass

oz – Ounces
lb – Pounds
ug – Micrograms
mg – Milligrams
cg – Centigrams
dg – Decigrams
g – Grams
kg – Kilograms
ct – Carats
ton – Tons
sg – Slugs

Force

lbf – Pounds-force
ozf – Ounces-force
nn – Nanonewton
un – Micronewton
dyn – Dyne
mn – Millinewton
cn – Centinewton
dn – Decinewton
n – Newton
kn – Kilonewton

Energy

e – Ergs
j – Joules
kj – Kilojoules
mj – Megajoules
gj – Gigajoules
ev – Electron volts
cal – Calories
kcal – Kilocalories
tn – Tons (explosive)
wh – Watt-hours
kwh – Kilowatt-hours
btu – British thermal units
flb – Foot-pounds

Power

eps – Ergs per second
mlw – Milliwatts
w – Watts
kw – Kilowatts
mw – Megawatts
gw – Gigawatts
calps – Calories per second
kcalps – Kilocalories per second
btuph – British thermal units per hour
btups – British thermal units per second
ftlbps – Foot-pounds per second
hp – Horse power

Magnetism

nt – Nanoteslas
ut – Microteslas
ga – Gauss
mlt – Milliteslas
t – Teslas
kt – Kiloteslas
mt – Megateslas

Volume

tsp – Teaspoons (US)
tbs – Tablespoons (US)
oz – Ounces (US)
cup – Cups (US)
pt – Pints (US)
qt – Quarts (US)
gal – Gallons (US)
uk_oz – Ounces (UK)
uk_pt – Pints (UK)
uk_qt – Quarts (UK)
uk_gal – Gallons (UK)
ml – Milliliters
lt – Liters

Frequency

hz – Hertz
khz – Kilohertz
mhz – Megahertz
ghz – Gigahertz
thz – Terahertz
